For Sale - UM - 8757 - Hosokawa Bepex Strong Scott Double Spiral Ribbon Blender

Specification

Reference Numbers

UM - 8757

Product

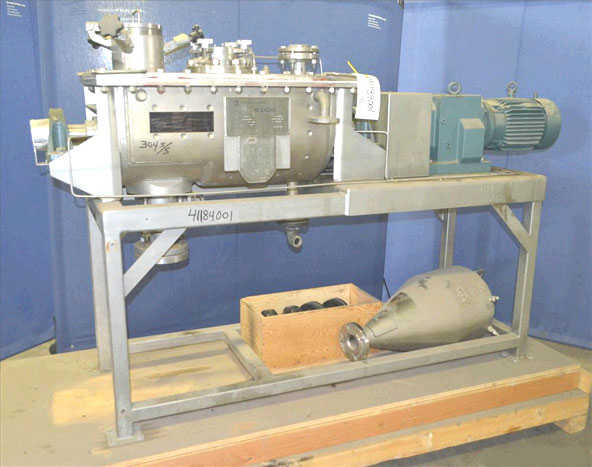

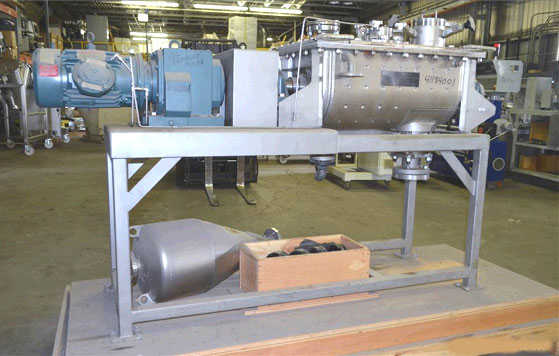

Hosokawa Bepex Strong Scott Double Spiral Ribbon Blender

Year Of Manufacture

2004

Location

USA
Product Details

Model: IMHS-2
- 2 Cubic feet working capacity
- 316 stainless steel
- Dimple jacketed trough approximately 14" wide x 30" long x 13" deep
- Internal rated full vacuum at 570 degrees F.
- Jacket rated 100 psi at 32 to 572 degrees F.
- Approximate 3" diameter shaft
- inner ribbon 1-1/2" wide x 1/4" thick
- outer 3/8" wide x 1/4" thick welded to 3/4" diameter posts.
- Bolt on top cover with a 2"
- 6" with cover
- 4" hand hole with a 2-1/2" sight glass in the cover
- Outboard roller bearing
- Purge seals.
- 3" End bottom outlet.
- Driven by a 3 hp
- 3/60/230/460 volt
- 1755 rpm XP motor thru a reducer.
- Approximate ribbon rpm 60.
- Mounted on a stainless steel frame with casters

(For images, please see next pages)
