For Sale - UM - 8769 - 8" Davis Standard Hot Feed Extruder

Specification

Reference Numbers

UM - 8769

Product

8" Davis Standard Hot Feed Extruder

Year Of Manufacture

2006

Location

USA

Product Details

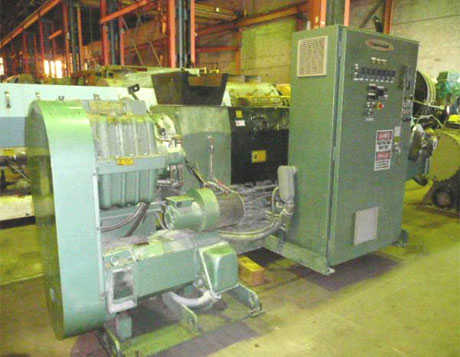

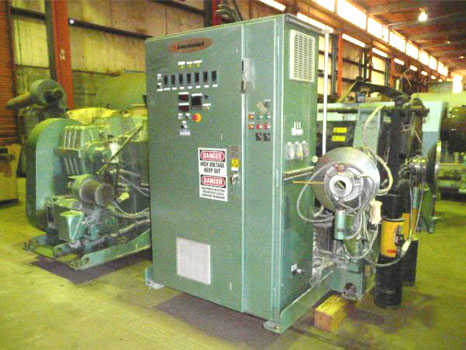

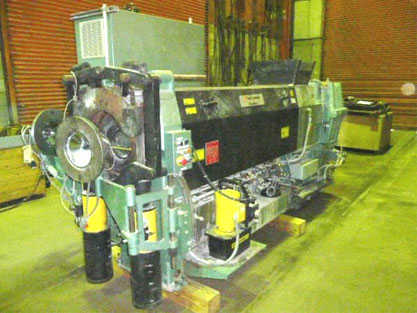

One (1) used 8" Davis Standard hot feed extruder

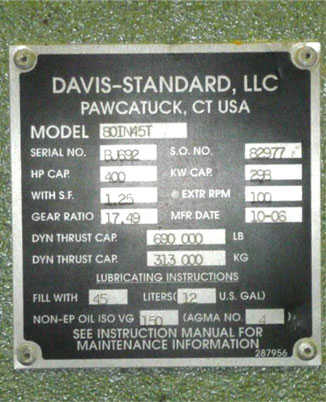

Model: 80IN45T
- Electrically heated
- Water cooled barrel
- 12:1 l/d
- 16" x 18" over sized feed throat
- Closed loop water circulation system with pump and reservoir

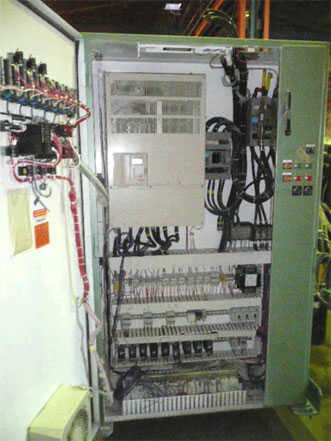

- 200 hp AC motor with ac VFD controller
- 460 volt
- Thru 17.49:1 gearbox
- 400 hp gear box rating with 1.25 service factor

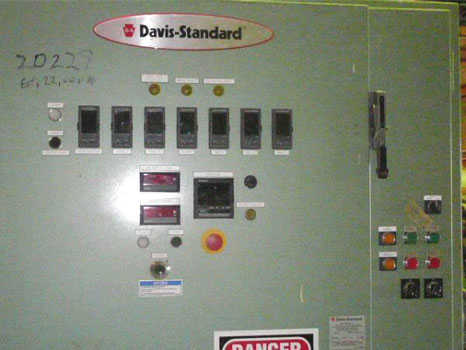

- Included temperature control panel with (7) Eurotherm model 3208 controllers
- Dual swing gate clamp system

(For images, please see next pages)
