For Sale - UM - 9101 - Dolci 3 Layer Cast Film Extrusion Line
Reference Numbers
UM - 9101Product
Dolci 3 Layer Cast Film Extrusion LineYear Of Manufacture
2008Location
Europe
- Film structure: ABC
- Material: Stretch
- Film width (mm): 2000
- Speed (m/min): 500 m/min working speed
- Output (Kg/hr): 1000
Extruder 1 Layer ref: A
- Screw diameter: 160
- Description: gravimetric dosing system Innoplast
Extruder 2 Layer ref: B
- Screw diameter: 90
- Description: gravimetric dosing system Innoplast
Extruder 3 Layer ref: C
- Screw diameter: 75
- Description: gravimetric dosing system Innoplast
- Die width (mm): 2500 mm; flat head Cloeren, Chill roll unit: chill roll with diameter 1500 mm; thickness control system: infrared thickness control system MDC; rewinder description: Type of reels: jumbo & reels for wrapping machine.
- Turret rewinder for machine.
Additional information:
- Drives ABB; installed power 600 KW

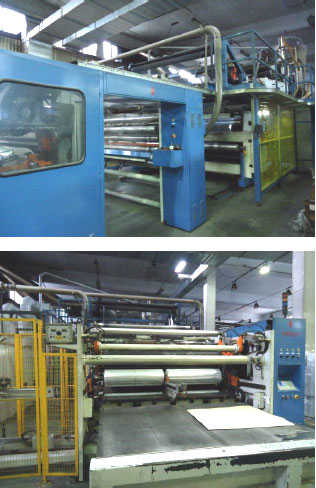

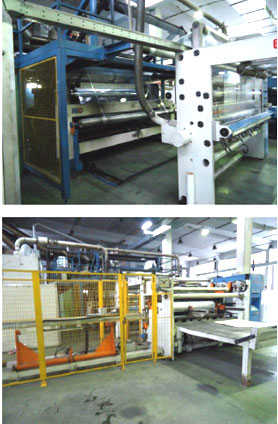

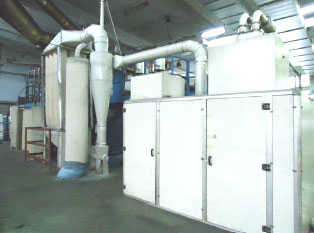

(For images, please see next pages)
