For Sale - UM - 9132 - Dolci 5 layer Cast Film Line
Specification
Reference Numbers
UM - 9132Product
Dolci 5 layer Cast Film LineYear Of Manufacture
1988Present Condition
No longer in production, but in good working conditionLocation
EuropeProduct Details
Materials to be processed:
- Stretch film
- Barrier film
- PP film
- LDPE
Extruders:
- Nb. of extruders: 4
- Extruder 1: Ø70 mm; 64 KW motor
- Extruder 2: Ø55 mm; 45 KW motor
- Extruder 3: Ø55 mm; 45 KW motor
- Extruder 4: Ø55 mm; 26 KW motor
Die:
- Flat die type
Output:
- Up to 500 kg/hour depending on material formulation
- Chill-Roller: 1600 wide
Winder, fully automatic roll change
- Winding width 1600 mm
Accessories:
- Longitudinal film cutting unit
- Edge trim cutting system
- Web guide
- Screen changer
- Chiller
- Thickness control
- Air shafts

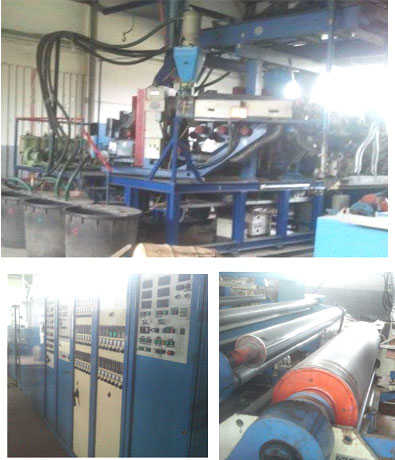

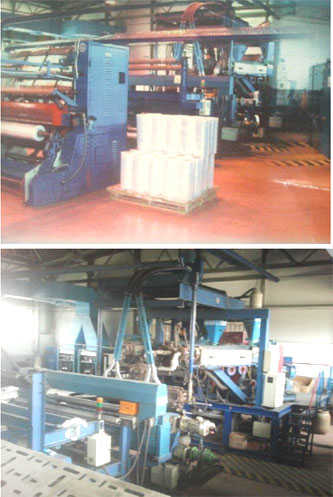

(For images, please see next pages)
