For Sale - UM - 9475 - Cerutti 8 color Rotogravure Printing Machine
Specification
Reference Numbers
UM - 9475Product
Cerutti 8 color Rotogravure Printing MachineYear Of Manufacture
1980Location
EuropeProduct Details
Model: 38 R
- Number of colors: 8 + solvent less lamination unit
- Web width (mm): 1070
- Print width (mm): 1020
- Print repeat range (mm): 440-880 mm
- Drying heat source: steam heaters
- Unwinder type: Turret automatic, max reel diameter unwinder (mm): 800
- Rewinder type: Turret automatic, max reel diameter renwinder (mm): 800
- Register control
- Viscosity control
Additional information's:
- In line solvent less lamination unit Nordmeccanica
- Print speed: 250 mt/min.
- 2 trolleys for cylinders
- Cylinders shafts: 16
- Pressure rollers: 8 size 1020 mm + 8 size 900 mm
- 6 ink pumps

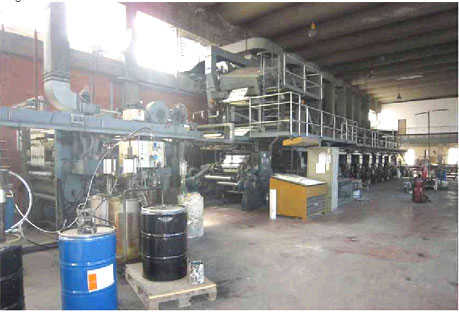

(For images, please see next pages)
