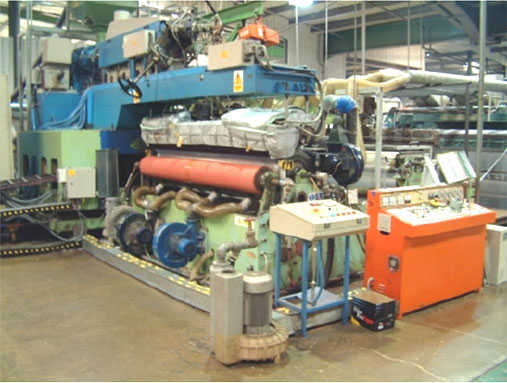

For Sale - UM - 9524 - SPL-A 2400 mm Air Bubble Film Line
Reference Numbers
UM - 9524Product
SPL-A 2400 mm Air Bubble Film LineYear Of Manufacture
1986Present Condition
ExcellentLocation
Europe
Width: 2400mm complete bubble film or 2460 mm with flat edges on both sides.
- Bubble sizes: 10 mm diameter x 4 mm high, 20 mm diameter x 7 mm high, 30 mm diameter x 13 mm high
- Thickness: 45 u to 20 u
- Standard 2 layer bubble film and 3 layer bubble film.
- Length: 35 - 350 m long
Cooling: Air cooling system for forming rollers
- Water cooling for nip rollers
- An independent water chiller installed.
Layout:
- 90 mm extruder with 2 x 2600 mm wide flat dies for standard 2 layer film
- 55 mm extruder with 1 x 2600 mm wide flat die for adding an optional 3rd layer
- Forming section
- 3rd layer section
- Slitting section
- Winding section
- All control / operating panels
Scrap: Scrap reprocessing system.
Power: 380 V - 50Hz 3 Phase.
- Independent transformer installed
(For image, please see next pages)
