For Sale - UM - 9621 - ROLAND UNIMAN 4/2S Rotary 4 color Printing Machine

Specification

Reference Numbers

UM - 9621

Product

ROLAND UNIMAN 4/2S Rotary 4 color Printing Machine

Year Of Manufacture

1989

Location

Thailand

Product Details

- 4 Reel changer
- Y 4 printing units
- Cutting floors - Turning bar units
- 1 folder (COLORMAN 2:3:4)

In 1995 supplement of the machine by
- 8 - Tower, built in 1995
- Vertical hot air dryer, built in 1995

In 1995, upgrade in the Machine:
- 2 Y -pressure units built in 1989 would be provided to a 6 Tower (4/2) one above the other

In 2006 supplement of the machine by
- 8- Tower, built in 1993

New machine configuration 2006:
- 2 x 8 - towers
- 1 x 6 Towers
- 2 x Y - pressure units
- 5 Reel changer
- 1 vertical hot air dryer
- Cutting floors
- Turning bar units
- 1 folder (COLORMAN 2:3:4)


- In a printing process thus can up to 80 pages in the Berliner format (31.5 x 47cm) will be printed .
- Of these, 40 pages in full color, 24 pages and 16 pages in two colors black and white.
- The max. Speed / h are approximately 25,000 copies. Paper speed about 7.8 m / sec

- 3 Mavo consoles with PECOM computer
- 3 register control systems CR 20-2006
- 1 control system CR 22-2006

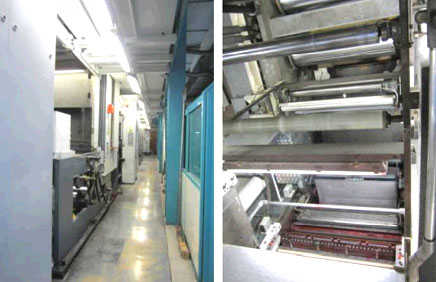

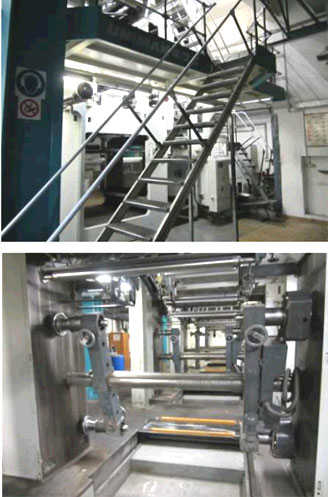

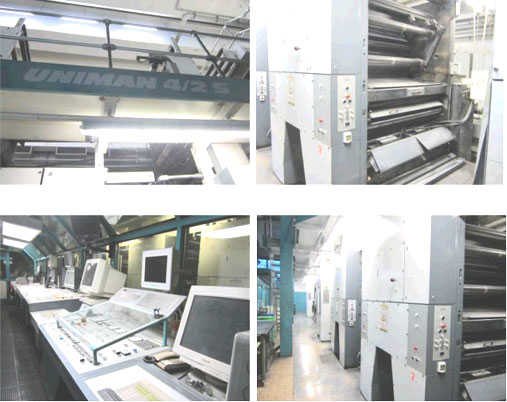

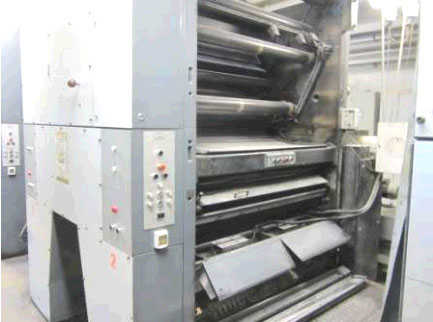

(For images, please see next pages)
