For Sale - UM - 9711 - UROLA MRSH-2 Extrusion blow moulding machine
Reference Numbers
UM - 9711Product
UROLA MRSH-2 Extrusion blow moulding machineLocation
Spain

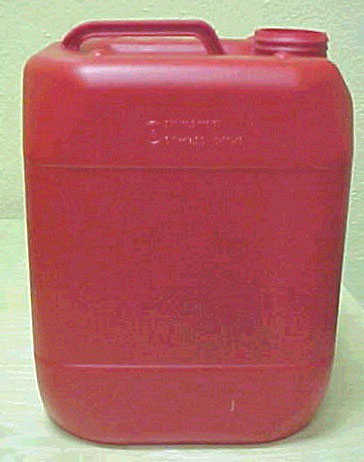

For plastic drums/deposits/containers up to 20-25 liters. This machine is fully operating. It has had several upgrading processes. In one of them, it was installed an automatic palletizing system, so that, at this time, the manufacturing process is fully automated from raw material feeding to the palletizing of the drums/containers.
Lot1 (id. 4643)
Category: Blowers
Brand: UROLA
Model: MRSH-2
Condition: used
Uds : 1
Hydraulic
Number of stations: 2
Blowable volume: 20-25 L.
EXTRUDER
Screw diameter: 90 mm.
Electric motor: 37 kW
Plasticizing: 168 kg / h
Temperature control zones 4
BLOWER
Maximum aperture between plates: 760 mm.
Minimum thickness of the mold: 150 mm.
Mould clamping force: 201 kN
VARIOUS
Total installed power: 90 kW
Air pressure: 8 kg/cm2
Flow of compressed air to 8kg/cm2 (approx.) 82 000 l / h
Cooling water pressure: 4 kg.
Dimensions aprox. : Length = 6950 mm, Width = 5680 mm, Height = 3700 mm. (Volume aprox. = 146.06 m3).
(For images, please see next pages)
