For Sale - UM - 24907 - 3.5 MW Cogen Plant Natural Gas Turbine Driven Generator
Specification
Reference Numbers
UM - 24907Product

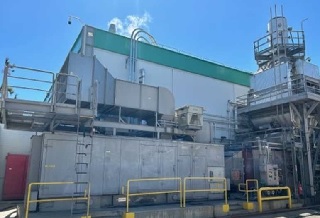

3.5 MW Cogen Plant Natural Gas Turbine Driven GeneratorLocation
USAProduct Details
Solar Turbines Centaur 40.
Model 4701,
Natural Gas Fired,
Generator rated at: 4375 kVA.
4160 Volts.
3 ph. 3.5 MW. 60 Hz.

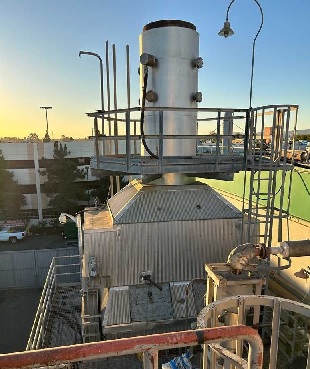

Energy Recovery Intl Boiler:
Type S2.5-2016 with Economizer.
Serial number W-3173/E-3174.
Total heating surface 14,617 sq ft.
Design pressure 425 psig.
Operating pressure 375 psig.
Temperature of feedwater to be furnished to unit 219F. Continuous steam capacity 40,000 lbs/hr.
Water capacity when flooded 10,725 lb 1,285 Gal.
Water capacity at operating level 8,000 Lb 960 Gal.
Total tubes 320. Tubes 2 in O.D.
Plant is 2021, and is still in operation.
Gas Turbine has 135 Starts and 16,711 hours
