For Sale - UM - 25590 - Prime Margo Twin Screw Extruder For Pipes

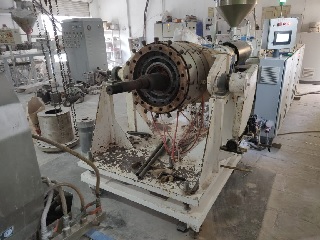

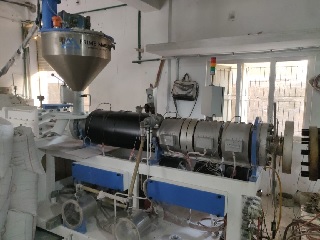

Main Extruder Unit
Make: Prime Margo Twin Screw Extruder – Model MTS-450
Capacity: 450 kg/hr
Control System: Delta PLC with SSR Relay Panel
Gear Box: Zambello (Italy)
Drive: Denforce Variable Frequency Drive
Output Capability: Suitable for up to 400 mm OD pipe

Tooling & Process Equipment
Die Head Model: P315 (Range: 110 mm to 315 mm)
Die Ring: 110 mm to 315 mm
Mandrel (4KGF/6KGF): 110 mm to 315 mm

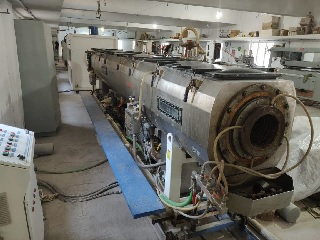

Cooling & Haul-Off
Vacuum Tank: VST-400 (SS) by Margo – 110 mm to 400 mm
Haul Off Unit: Four Belt Haul Off (Margo) – 110 mm to 400 mm

Cutting & Finishing

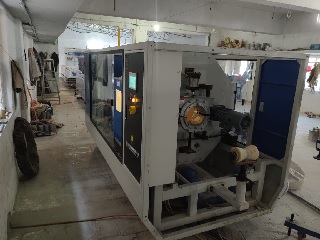

Planetary Cutter: Jwell make with chamfering – 90 mm to 400 mm
Spiral Loader: Margo make
Printing Machine with Batch Number: Make – Utkarsh Ahmedabad (90 mm to 400 mm)

Socketing & Belling
Inline Belling/Socketing Machine:
Range: 110 mm to 400 mm
Operation: Fully automatic (Hydraulic & Pneumatic)
Features: Embossing logo attachment
Control System: Mitsubishi PLC with HMI, SS304 Pressure Chamber
Make: Vikram Industries, Jalgaon

Accessories
Pipe Roller Support: 3 Meter
Aluminium Clamp: 110 mm to 315 mm
Plane Socket Mandrel: 110 mm to 315 mm
Rubber Ring Collapsible Mandrel (SS): 250 mm, 280 mm, 315 mm
Guide Mandrel: 250 mm, 280 mm, 315 mm
Chiller: Jyoti Make Compressor – Denforce (Capacity: 40 TR
