For Sale - UM - 18349 - Flexotecnica 10 Colours CI Flexo Central Drum Printing Press
Reference Numbers
UM - 18349Product

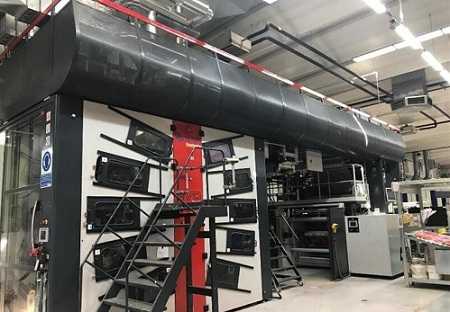

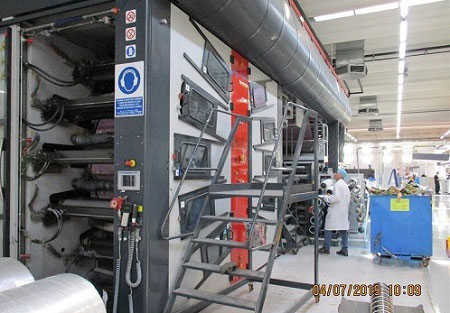

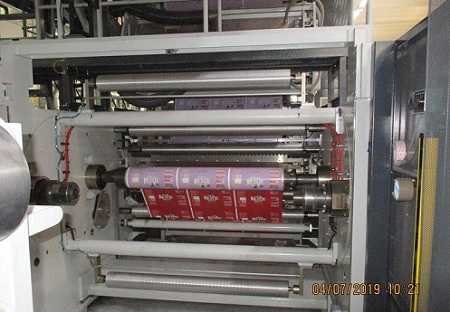

Flexotecnica 10 Colours CI Flexo Central Drum Printing PressYear Of Manufacture
2016Location
Europe
Model:- EVOXD
Gearless
Fast sleeve change
Web width (mm):- 1320
Print width (mm):- 1270
Max reel diameter unwinder (mm):- 1000
Rewinder type:- Turret shaftless
Drying:- Oil burner
Videocamera:- Graficontrol Progrex 500 ( system Matrix 500 statistical and Lznex 100% iquality inspection)
Corona treatment:- ME.RO. power 12kW
Web guides:- 2
Inking system:- closed chambers doctor blades
Anilox:- 24 anilox n. 90 Vol.23 and n. 420 Vol.4,5
Print Sleeves:- 37 sleeves form 450 mm to 1.230 mm
Print cylinders:- 620 from 400mm to 790 mm
Additional information:- Speed: 500 m/min Register
Control: Grafikontrol cr34 LEL system NIRA mod: Sagitttarius 5000 Plate mounter camis irisleeve 1303:
Width: 1300 mm Sleeve warehouse SIMBA - GAMA: Blocks: 15 Manual
