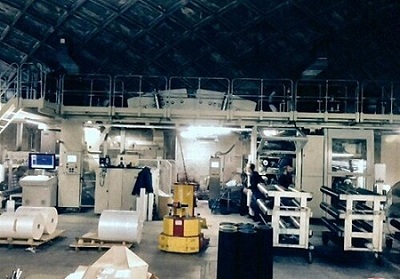

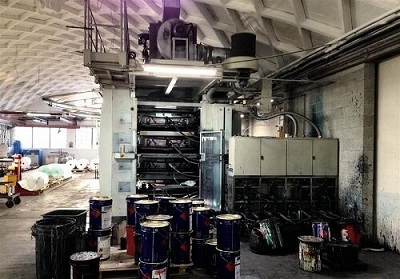

For Sale - UM - 18281 - Schiavi Sigma 8 Colour Flexo Central Drum Printing Press
Reference Numbers
UM - 18281Product
Schiavi Sigma 8 Colour Flexo Central Drum Printing PressYear Of Manufacture
2003Location
Europe
Model:- Sigma
Print possibilities:- 8+0
Gearless
Fast sleeve change
Web width (mm):- 1240
Print width (mm):- 1200
Max reel diameter unwinder (mm):- 800
Rewinder type:- Turret Automatic
Drying:- 2 zones - four fans Thermo oil heat exchangers
Videocamera:- BST Q Center full control.
Web guides:- Yes in and out
Inking system:- Close chamber doctor blades
Anilox:- 16 ceramic an ilox sleebes 3x 360 l/cm-vol 4,5 , 1x 360 l/cm vool,3,6; 2x 300 l/ cm -vol.3,9 ; 3x 260 l/ cm vol,4,2; 1x 260 l/cm vol,4,5 ; 1x 220 l/cm vol.5,5 ;1x 180 l/cm-vol,6,8 ;1x 140 l/cm vol,8 ; 2x 120 l/cm vol.10 ;2 x 100 l/cm vol.13
Print Sleeves:- 140 sleeves as follows 8 for each following repeat 361 ,380 , 403 ,433 ,433 ,473 ,473 ,493 ,513 ,533 ,563 ,583 ,603 ,643 ,673 ,693 ,720
Print cylinders:- 2 sets of carriers
Additional information:- Plate mounter Bieffebi with proofing drum Available used thermo oil boiler
