For Sale - UM - 18615 - Uteco Onyx 808 CI Flexo Printing Machine
Reference Numbers
UM - 18615Product

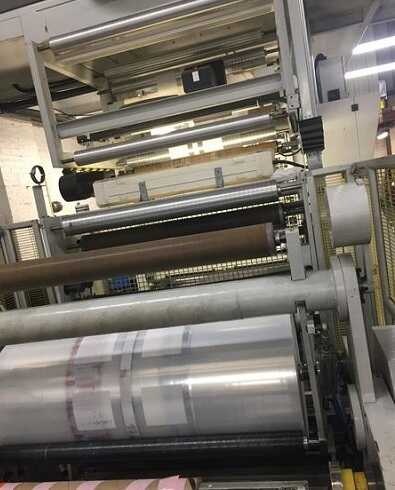

Uteco Onyx 808 CI Flexo Printing MachineYear Of Manufacture
2006Location
Europe
Model: ONYX 808
Number of colors: 8
Print possibilityes: 8+0
Gearless:
Fast sleeve change:
4 motor per deck CNC position system:
Computer supervision:
Web width (mm): 1250
Print width (mm): 1200
Min print repeat (mm): 360
Max print repeat (mm): 760
Unwinder type: Turret Automatic non stop
Max reel diameter unwinder (mm): 800
Rewinder type: Turret automatic non stop
Max reel diameter rewinder (mm): 800
Drying: 2 zones , 4 fans with inverter , tunnel 4 mt length , 2 gas burners .
Videocamera: BST Super Hanyscan 3000
Web guides: yes in and out
Inking system: Closed chamber doctor blades
Anilox: 8 ceramic anilox sleeves 2 x 100 l/ cm, 1 x 80 l/cm , 2 x 120 l/cm, 1x 140 l/cm ,1x 170 l/cm, 1x 200 l/cm
Print Sleeves: 98 print sleeves with repeat between 360 and 690 mm
