For Sale - UM - 18628 - W&H Heliostar Rotogravure Printing Press
Reference Numbers
UM - 18628Product

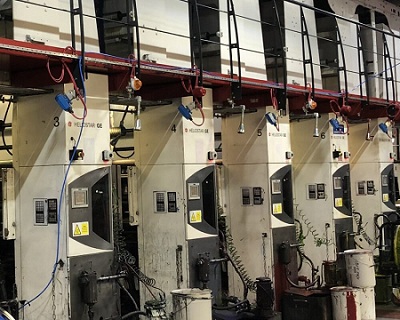

W&H Heliostar Rotogravure Printing PressYear Of Manufacture
2005Location
Europe
Model:- Heliostar
Type of inks:- Solventbased
Number of colors:- 10 (unit 9 not working)
Max. web width:- 1720 mm
Max. printing width:- 1700 mm
Min. – Max. printing repeat:- 450 - 900 mm
Max. mechanical speed:- 450 m/min
Unwind type:- Automatic turret
Max. unwind reel diameter:- 1000 mm
Rewind type:- Automatic turret
Max. rewind reel diameter:- 1000 mm
Drying type:- Gas
Units 9 and 10 have double
Extended dryers
Unit 1 and 8 have double dryers
Corona treater :- Yes, two treater
Inline slitting:- Razor and crush cut in line slitting on lamination unit
Number of cylinders:- Approx 1900
Including:- Turner bar between units 7 and 8
In-line lamination possibility (including sondary unwinder)
Register setup system
