For Sale - UM - 18914 - Windmoller & Holscher 10 Colour Rotogravure Printing Machine
Reference Numbers
UM - 18914Product

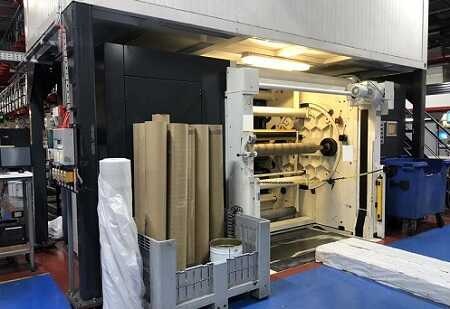

Windmoller & Holscher 10 Colour Rotogravure Printing MachineYear Of Manufacture
2005Location
Europe
Model:- Heliostar GE
Number of colors:- 10
Print possibilities:- 10 col printing, 9 col print + cold seal, 9 col rpint + lamination, 8 col print + lamination and coating
Drive:- Electronic shaft
Trolley system
Web width (mm):- 1720
Print width (mm):- 1700
Print repeat range (mm):- 450-900 mm (ECO PLUS)
Drying specifications:- Unit 1-7 single hood, 2,3m length, 15 nozels, vol 10.000m3/h. Unti 8 double hood, 4,6m length, 30 nozels, vol 20.000m3/h, Unit 9-10 Jumbo dryer 7,2 m length, 44-48 nozels, vol 30-32.000m3/h,
Drying heat surce:- gas gurners
Unwinder type:- 2 unwinders (primary and secondary) Turret
Max reel diameter unwinder (mm):- 1000
Rewinder type:- Turret
Max reel diameter rewinder (mm):- 1300
Videocamera:- BST Eltromat with defect control
Register control:- BST Eltromat
Vyscosity control:- Automatic
Print cylinders:- 1923
