For Sale - UM - 33340 - Prism VARICUT 24 Pelletizing Line

Specification

Reference Numbers

UM - 33340

Product

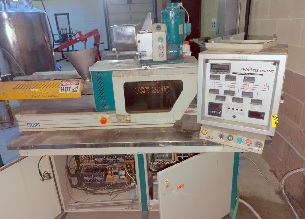

Prism VARICUT 24 Pelletizing Line

Location

USA
Product Details

Extruder Model: TSE 24TC
Extruder Type: Parallel twin screw extruder
Screw Diameter: 24 mm
Screw Configuration: Co-rotating
L/D Ratio: 25:1
Barrel Construction: Electrically heated, water cooled
Top Vents: 3 total, 2 plugged
Barrel Zones: 6

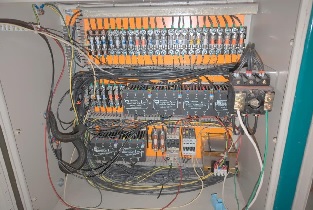

Controls: On-board control panel
Extruder Drive: 3.7 kW motor
Voltage: 230 Volt AC
Speed Control: VFD controller
Die: Two-hole strand die
Feeder Included: Yes
Feeder Drive: .26 kW
Feeder Hopper: Agitated hopper
Material Hopper Included: Yes
Pelletizer Model: VARICUT 24
Water Bath Size: Approx. 8" x 8" x 59" long
Water Bath Material: Stainless steel
Air Wipe: 2.5" wide with blower
Pelletizer Width: 2 5/8" wide strand pelletizer
Pelletizer Features: Pull rolls, helical rotor
Pelletizer Drive: 1.1 kW motor
