For Sale - UM - 24743 - Rotomoulding Machine

Oven Diameter : 4.7 meters Furnace Depth : 3.9 meters Installed Power : 45 kW
Gearmotor 2 pcs
A 1.5 kW motor was used on the car chassis to ensure the reciprocating movement of the car to which the molds are attached.
Gearmotor

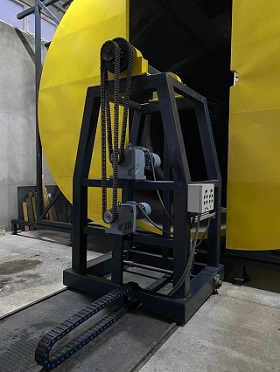

After the molds enter the rotation machine, it is used to provide 360 degree rotation movement in the horizontal direction thanks to the sprocket mechanism.
Electric Motor 1: 7.5 kW U arm outer rotation
Input Options: 1450 rpm
Output Speed 24 rpm

Electric Motor 2: 5.5 kW straight arm outer rotation
Input Options: 1445 rpm
Output Speed 23 rpm
Gearmotor
After the molds enter the rotation machine, the sprocket mechanism is used to provide 360 degree rotation movement in the vertical direction.
Electric Motor: 4 kW 2 Input Options for internal rotations: 1430 rpm
Output Speed 26.6 rpm
Centrifugal Ventilator (Fan) 1 piece
It is used to provide the hot air circulation required to ensure the melting of the raw material in the molds.
Electric Motor: 15 kW - 1.450 rpm Flow rate: 16.000 m3/h
Fan Speed 1,750 rpm
Drive Type Belt Pulley

Control Panel
In the rotation machine
The back and forth movement of the car,
The opening and closing of the door,
Bidirectional movement of the part to which the molds are attached,
Operating the centrifugal fan,
It is used for manual operation of operations such as starting the burner
Electric Panel (Vertical)
Schneider PLC
Weintek 10" Touch Screen ABB Drive (9 pcs)
Schneider Switchgear Weidmüller terminal block and relay group
Single cover free standing type 180*100cm electrostatic painted panel Telemechanical stop switch 8 pcs (stops vehicles and doors)
Weintek 10" Touch Screen
It is used as one on the electrical panel in order to make the drive settings of the rotation machine and to control the machine.

Linear Path
It is used to ensure that the trolley to which the molds are attached can enter the oven smoothly thanks to the wheels mounted on the rail. 2 sets
Linear slide
Allows doors to be opened with little energy and friction. 2 sets
Burner
Riello brand RS70 Double stage
Tri-phase energy supply

Isolation
100 mm rock wool insulation in the furnace.
100 mm rock wool insulation in chimney
PT-100
ORDEL BRAND
4-20 mA analog signal
1/2 threaded ball joint
It controls the burner proportionally by instantly monitoring the internal temperature of the oven. Saves gas
