For Sale - UM - 33334 - Sandretto 200 Ton Injection Molding Machine

Specification

Reference Numbers

UM - 33334

Product

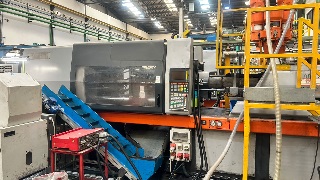

Sandretto 200 Ton Injection Molding Machine

Location

Europe
Product Details

Model OTTO 200
Serial Number M8460564
Machine Type Horizontal hydraulic injection molding machine
Technology Proportional hydraulic system
Control System SEF 90 / SEF 100 (depending on version)
Application:-General injection molding (automotive, electrical,
packaging)

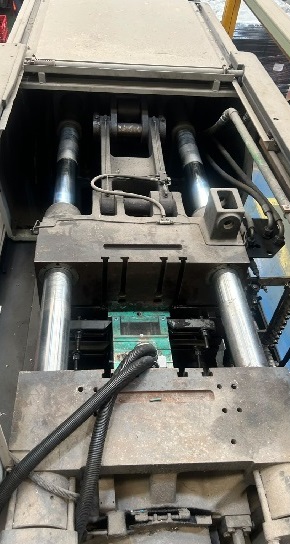

Clamping Unit
Clamping Force 2000 kN (200 tons)
Opening Stroke 550 mm
Maximum Daylight ~1180 mm
Platen Dimensions 770 × 770 mm
Tie Bar Spacing 510 × 510 mm
Mold Height 210–630 mm
Ejector Stroke ~190 mm

Injection Unit
Screw Diameter 50–55 mm
Injection Volume 392–546 cm³
Shot Weight ~500 g
Injection Pressure Up to ~1450–1560 bar
Heating Zones ~4

Dimensions & Weight
Dimensions (L × W × H) ˜ 6360 × 2140 × 1840 mm
Machine Weight ˜ 8,800 kg

Electrical Data (Typical)
Power Supply 380–400 V / 50 Hz
System Hydraulic system with proportional control
Robot Interface Euromap 12

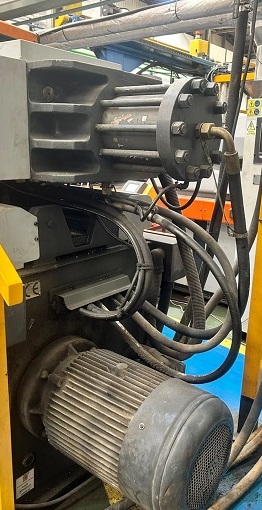

Hydraulic System
Oil Capacity ~365 L
Hydraulic System Conventional proportional hydraulic system
