For Sale - UM - 33331 - Sandretto 380 Ton Injection Molding Machine

Specification

Reference Numbers

UM - 33331

Product

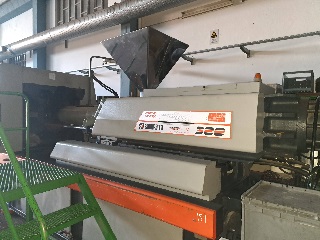

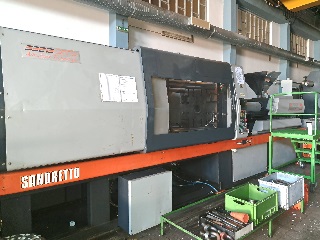

Sandretto 380 Ton Injection Molding Machine

Year Of Manufacture

1999

Location

Europe
Product Details

Series: OTTO
Model: 2054/380
Machine Type: Hydraulic injection molding machine for thermoplastics
Euromap Classification: 2054/380

Clamping Unit
Clamping Force 380 t (3,800 kN)
Opening Stroke 710 mm
Minimum Mold Height 200 mm
Maximum Mold Height 730 mm
Tie-Bar Spacing 570 × 570 mm
Tie-Bar Diameter 130 mm
Ejector System Hydraulic
Ejector Stroke 240 mm
Ejector Force 8.7 t

Injection Unit
Screw Diameter 75 mm
L/D Ratio 21:1
Maximum Injection Capacity 1,370 cm³
Maximum Injection Pressure 1,500 bar
Injection Rate 407 cm³/s
Heating Zones 4 + Nozzle
Screw Type Bimetallic

Hydraulic and Electrical System
Hydraulic Pump Power 45 kW
Heating Power 27.3 kW
Total Installed Power 72.3 kW
Supply Voltage 380 V – 50 Hz
Hydraulic Oil Tank Capacity 580 liters
Lubrication System Automatic Centralized Lubrication

Platens and Mold Specifications
Platen Dimensions 860 × 860 mm
Air Valve 1
Hydraulic Core Circuits 2

Dimensions and Weight
Length 8,340 mm
Width 2,420 mm
Height 1,780 mm
Approximate Weight 16,000 kg
