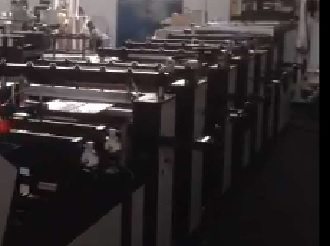

For Sale - UM - 24853 - Scae Dimatic Pouch Bag Making Machine (Zipper)
Specification
Reference Numbers
UM - 24853Product
Scae Dimatic Pouch Bag Making Machine (Zipper)Year Of Manufacture
2014Location
EuropeProduct Details
Model:-Dimatic ETH 201PB/66
Type of bag:-2 side seal pouch(with zipper)
3 side seal pouch(with zipper)
Min-Max bag width:-50 – 400 mm
Min-Max bag length:-100 – 550 mm
Max. number of lanes:-2
Max. mechanical speed:-90 m/min
Max. number of cycles (cycles/min):-240 cycles/minute
Materials:-PET/PE, PE/PE and PE mono materials
Type of take-off Conveyor-belt
Number and size of longitudinal sealers:-1 (for bottom seal and zipper sealing)
Length: 200 mm
Width: 10 mm
Number and size of cross sealers:-3
Length: 600 mm
Width: 10 mm
Unwind type Double
Max. unwind width:-600 mm
Max. unwind reel diameter:-600 mm
Zipper possibility
Servo
