For Sale - UM - 18494 - 1350 MM Wide Mondon Dual 2 Station Turret Winder

Specification

Reference Numbers

UM - 18494

Product

1350 MM Wide Mondon Dual 2 Station Turret Winder

Year Of Manufacture

1999

Location

Europe

Product Details

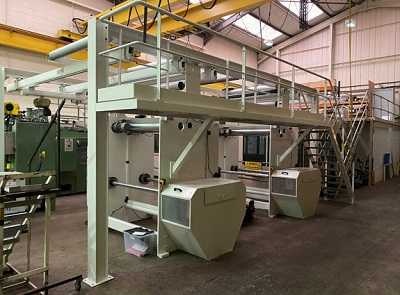

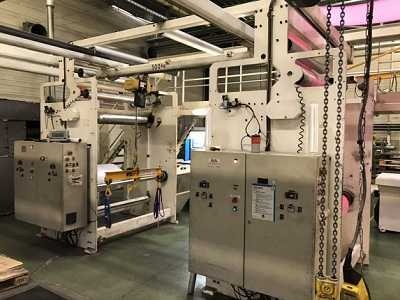

1350 mm wide Mondon dual 2 station turret winder (4 station in total)
Max roll diameter 1000 mm.
Tension control, with overhead frame

Was running 0.2-2 mm sheet
Width from 300 mm to 1350 mm
1450 mm wide roller table
Roll diameters from 1 x 1000 mm or 2 x 600 mm
Max roll weight 1200 kgs
76,152,204 mm cores
Winding speeds from 4m/min to 35 m/min
