For Sale - UM - 24177 - Kampf Slitter Rewinder
Reference Numbers
UM - 24177Product
Kampf Slitter RewinderYear Of Manufacture
1993Location
USA

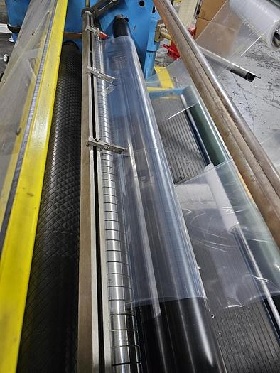

63” Wide Conslit US 106 (Kom. # 3633) cantilevered slitter rewinder
Maximum rewind diameter of 24”. 3" cores only on rewind
The slitting section has 4 slit blade knife holders.
The pull rolls and idlers are rubber covered with diamond cut.
Automatic rewind taper/tension control
Goldenrod direct friction air differential 3” rewind shafts.
Top riding rolls are pneumatically loaded.
Finished rolls are off loaded onto the doffing tree.
Speeds up to 1500 FPM
Main drive is 10HP and two 10HP rewind drives.
Alen Bradley PLC with a operator interface through a key pad, LCD display.
Unwind for diameters up to 40”. 3 or 6" cores on unwind
One pneumatic 3” and 6” diameter unwind shaft.
The unwind has an automatic fife edge guide with +/- 2” travel.
Automatic unwind tension control.
Air cooled unwind brake.
Hydraulic lift for the unwind roll.
Included are all the backup programs and schematics/documentation for the Kampf
