For Sale - UM - 17001 - Sitec Slitter Rewinder

Specification

Reference Numbers

UM - 17001

Product

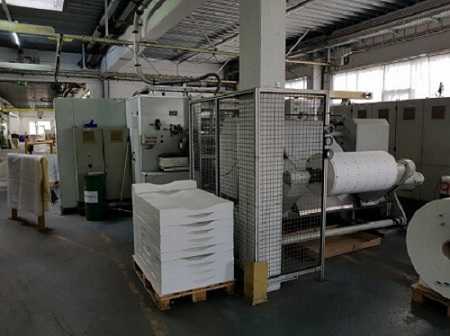

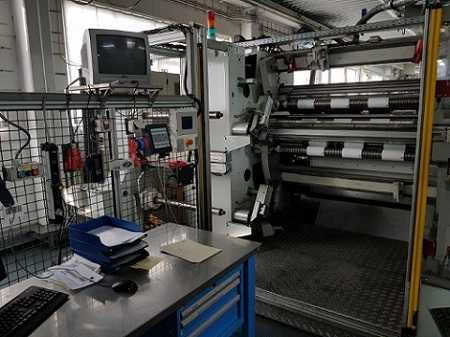

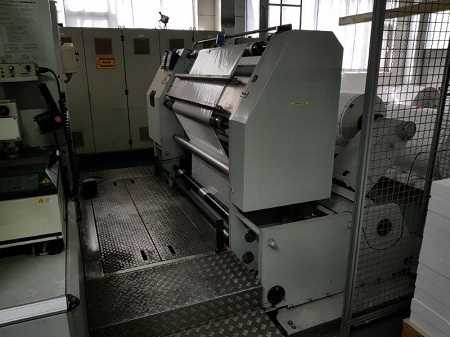

Sitec Slitter Rewinder

Year Of Manufacture

1997

Location

Europe
Product Details

Max. web width:-1300 mm
Max. mechanical speed:- 400 m/min
Unwind type:- Single
Max. unwind reel diameter:- 1000 mm
Razor or rotary shear slitting:- Rotary sheer
Min. slitting width:- 40 mm
Number of knives:- 28 knives
Rewind type Slitter*:- Double turret
Number of rewinding shafts/stations:- Double shaft
Max. diameter finished rolls:- 600 mm
Edge guide(s):- Yes
Edge removal:- Yes

Other information:- Automatic unit to remove finished rolls and
Put on new cores,
Conveyor belt for finished rolls
Hot melt unit for attaching end of roll
Spare parts:- Yes
