For Sale - UM - 19478 - Soma Lamiflex Solventless Lamination & Coating Machine

Specification

Reference Numbers

UM - 19478

Product

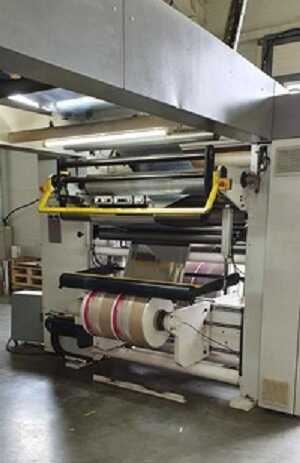

Soma Lamiflex Solventless Lamination & Coating Machine

Year Of Manufacture

2012

Location

Europe
Product Details

Application:- Duplex lamination
Type of lamination/coating:- Solventless
Working width:- 1300 mm
Speed:- 400 mech.
First unwinder type:- Shaftless single
Max diameter reel unwinder:- 1000
Secondary unwinder type:- Shaftless single
Max diameter reel unwinder:- 1000
Rewinder type:- Shaftless single
Max diameter reel rewinder:- 1000
Coating unit:- 5 roll type
Pumping mixing unit:- 2 and 1 component mixers
Corona treatment:- 1 piece
Additional information:- Tension range at rewinding: 4-55Kg Tension range at unwinding: 2-40Kg Overall dimensions: 6200x3400x3000mm LxWxH Materias: Paper and lamainates 30-150sgm
