For Sale - UM - 17711 - Illig RDK 54 Thermoforming Machine

Specification

Reference Numbers

UM - 17711

Product

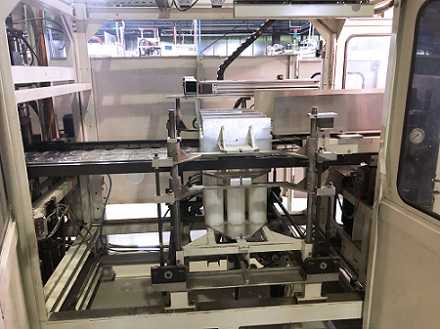

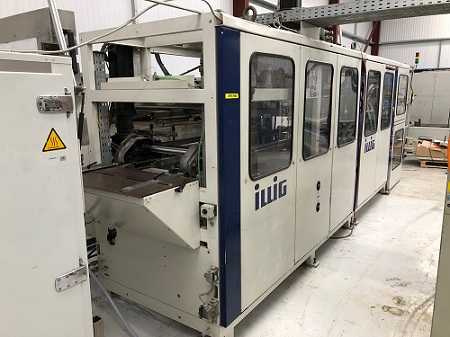

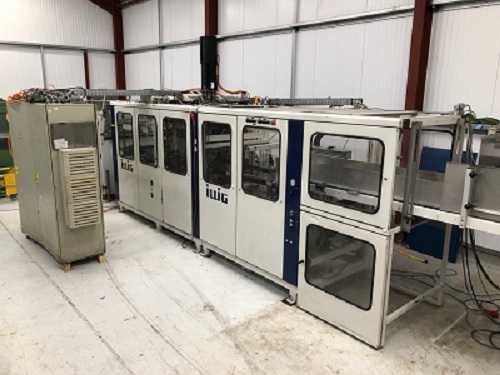

Illig RDK 54 Thermoforming Machine

Year Of Manufacture

1998

Location

Europe

Product Details

Hours Approx:- 45000
Stations:- In Mould Cutting and Stacking
Maximum Forming Area:- 500 x 380 mm
Depth of Draw:- 120 / 120 mm
Max Material Width:- 540 mm
Max Mould Closing Force:- 5000 daN
Maximum Cycles-Minute:- 40
Forming Pressure:- 5 bar
Approx Total Length incl roll stand:- 7000 mm
Approx Total Width incl Control Cabinet:- 3900 mm
Approx Total Height:- 3100 mm
Approx Total Weight:- 4500 kg
