For Sale - UM - 18509 - Uniloy Model 122-3 Injection Blow Moulding Machine
Specification
Reference Numbers
UM - 18509Product

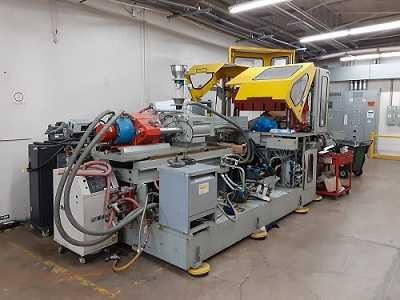

Uniloy Model 122-3 Injection Blow Moulding MachineYear Of Manufacture
2000Present Condition
Machine is in good working conditionLocation
USAProduct Details
Clamp force- total- 122 tons
Clamp force- blow side- 19 tons
Clamp force- injection side-103 tons
Maximum die set width- 38"
Maximum stack height- 22”
Maximum daylight- 15"
Trigger bar length (maximum useable)- 34"
Swing radius- 27.75"
Screw diameter- 2 1/2"
Extruder L/D ratio- 25:1
Hydraulic pump motor size- 100 H.P.
Air cooled barrel
Electrical specifications- 460 volts- 3 phase- 60 cycles
Machine dimensions- 192.5” length x 91” wide x 116” tall (including hopper)
Machine weight- approximately 30,000 pounds
