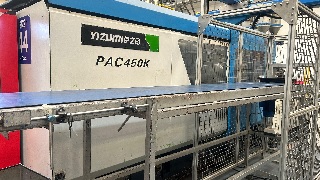

For Sale - UM - 33333 - Yizumi 450 Ton Injection Moulding Machine

Model PAC450K
Serial Number R2041002
Machine Type High-Speed Horizontal Injection Moulding Machine
Main Application Packaging / Thin-Wall Injection Moulding

Clamping Unit
Clamping Force 4,500 kN (450 Tons)
Opening Stroke 700 mm
Maximum Daylight 1,450 mm
Platen Dimensions 1,105 × 1,105 mm
Tie Bar Spacing 720 × 720 mm
Mould Height 370–750 mm
Ejector Stroke 200 mm
Ejector Force 137 kN

Injection Unit
Screw Diameter 70 mm
Shot Volume 1,211 cm³
Shot Weight (PS) Approx. 1,115 g
Maximum Injection Pressure Approx. 180–190 MPa
Injection Unit Type High-Speed

Dimensions & Weight
Machine Dimensions (L × W × H) 8,200 × 2,100 × 2,200 mm
Machine Weight Approx. 17,000–19,000 kg

Electrical Data
Total Installed Power 195 kW
Power Supply 380 V / 50 Hz
Rated Current 350 A
Short-Circuit Current 15 kA

Hydraulic System
Parameter Value
System Pressure 17.5 MPa
Hydraulic Oil Capacity Approx. 950 L
