| MACHINE DATA | |
| RANGE OF PRODUCTION | 19 mm dia to 35 mm dia.with 95 mm long to 150 mm long. |
| PRODUCTION CAPACITY | 6 to 10 tubes/ min. |
| TUBE WALL THICKNESS | 0.4 mm to 0.6 mm. |
| TUBE WEIGHT | 2.0 gms. to 12 gms. |
| PLASTIC MATERIALS CAN BE PROCESSED | LDPE, HDPE and combination of LDPE & HDPE |
| PLASTICISING CAPACITY | @4 kg/ hr. |
| HOPPER CAPACITY | @10 kg. |
| INSTALLED POWER | |
| BARREL HEATING | 1000 Watts * 3 = 3000 Watts, 220 Volts A.C./ 50 Hz. |
| NOZZLE HEAD HEATING | (550 + 700 Watts) = 1250 Watts, 220 Volts A.C./50 Hz. |

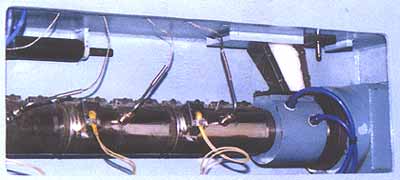

| HEATING CONTROL | PID based temperature controller for precise control of individual heaters. |
| PRE-TREATMENT DRYING | 220 Volts * 7.5 K.V r.m.s. (Corana discharge) |
| DRYING | 350 Watts * 3 - 1050 Watts, 220 Volts A.C./ 50 Hz. |
| DRIVE | |
| MAIN MOTOR | 1.5 KW, 220-Volts three phase 960 R.P.M./50 Hz. |
| SCREW DRIVE | 2.2 KW, 440-Volts/three phase 1440 R.P.M./50 Hz. |
| POWER CONSUMPTION | |
| HEATING UP | 4.5 KW |
| CONTINUOUS OPERATION | 6.0 KW |
| CONNECTIONS | |
| SUPPLY RATING | 9KW- 3 phase, 440 V/ A.C--NUETRAL |
| PROTECTION | By earthing the machine. |
| COOLING WATER SUPPLY | 2 to 3 kg at 15 to 20 degree cooled. |
| BORE OF CIRCUIT | 8 mm. |
| COMPRESSED AIR CONNECTION | 5 to 7 kg / sq.cm. |
